Digital Signage Displays & Media Players
SCD-V13.3P

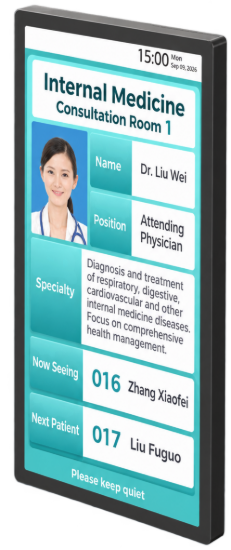

13.3-inch Android Metal Digital Signage - Wall-Mount Panel
Android 11
Touch Optional
Quad-Core
Wi-Fi, LAN, BT
Metal Housing
Full HD 1080p
Board
RK3566, quad-core Cortex-A55, 1.8 GHz
Touch
Optional - G+G capacitive, 10 points, tempered glass
RAM
4 GB (2 GB optional)
Resolution
1920 x 1080 (Full HD), 16:9
Viewing angle
85 / 85 / 85 / 85 degrees (L/R/U/D)
Luminance
250 cd/m2
SKU:
SCD-V13.3P
Free shipping
No price shown online — our GCC team will quote based on quantity, mounting and install.
Overview
More about SCD-V13.3P
Why SCD-V13.3P
1
Brilliant Full HD display
13.3″ A-grade IPS LCD with 1920×1080 resolution, 800:1 contrast and 85° viewing angles in every direction — sharp, vivid content from anywhere in the room.
2
Touch, only if you need it
An optional G+G 10-point tempered glass capacitive touch panel turns the same display into an interactive screen — or leave it off for pure, reliable signage playback.
3
Connect it your way
Wi-Fi 802.11 b/g/n, 10/100M Ethernet (RJ45) and Bluetooth 4.0, plus USB 2.0/3.0 Host, Micro/Mini USB OTG, HDMI output, TF card slot and 3.5 mm audio for flexible deployment.
4
Built to last, slim to fit
Robust metal housing in black or silver, just 25.8 mm thin, VESA 210×170 mm wall mounting and 0–50°C operating range for compact spaces.
Specifications
Products specifications
System
Board
RK3566, quad-core Cortex-A55, 1.8 GHz
RAM
4 GB (2 GB optional)
Storage
32 GB internal memory (16/64 GB optional)
OS
Android 11
Language
Multi-language
Display
Panel
13.3-inch A-grade LCD IPS panel
Resolution
1920 x 1080 (Full HD), 16:9
Active area
332.40 (H) x 206.40 (V) mm
Display mode
Normally black, IPS
Viewing angle
85 / 85 / 85 / 85 degrees (L/R/U/D)
Contrast ratio
800:1 ref.
Luminance
250 cd/m2
Touch & Network
Touch
Optional - G+G capacitive, 10 points, tempered glass
Wi-Fi
802.11 b/g/n
Ethernet
10/100M Ethernet
Bluetooth
Bluetooth 4.0
PoE
No (optional add-on)
Media Playback
Video
MPEG-1/2/4, H.263/H.264, AVI, RMVB, etc., up to 2K
Audio
MP3 / WMA / AAC etc.
JPEG, PNG etc.
Interface
USB
USB Host (USB 2.0 x1, USB 3.0 x1)
OTG
Micro / Mini USB OTG
Card slot
TF card
HDMI
Output, up to 1080p@60Hz or 4K@30Hz
LAN port
RJ45
Audio jack
3.5 mm earphone + microphone
Power jack
DC power input
Build & Customisation
Mounting
Wall mount, VESA 210 x 170 mm
Speakers
2 x 1.5 W
Materials
Metal housing, black / silver
Camera
No (2.1 MP HD face-recognition camera optional)
Working temp.
0C to +50C
Warranty
1 year
Product Measurements
Unit size (no packaging)
332.3 x 206.3 x 25.8 mm (LxWxH)
Giftbox size (packed)
400 x 290 x 130 mm (LxWxH)
Net weight
2.0 kg unit, 3.0 kg packed
In the box
Adapter (12V/2A), user manual, warranty card
